    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water

    Ask Lasest Price
    Model Number : my
    Brand Name : OEM
    Price : $11.00/sets 10-99 sets
    • Product Details
    • Company Profile

    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water

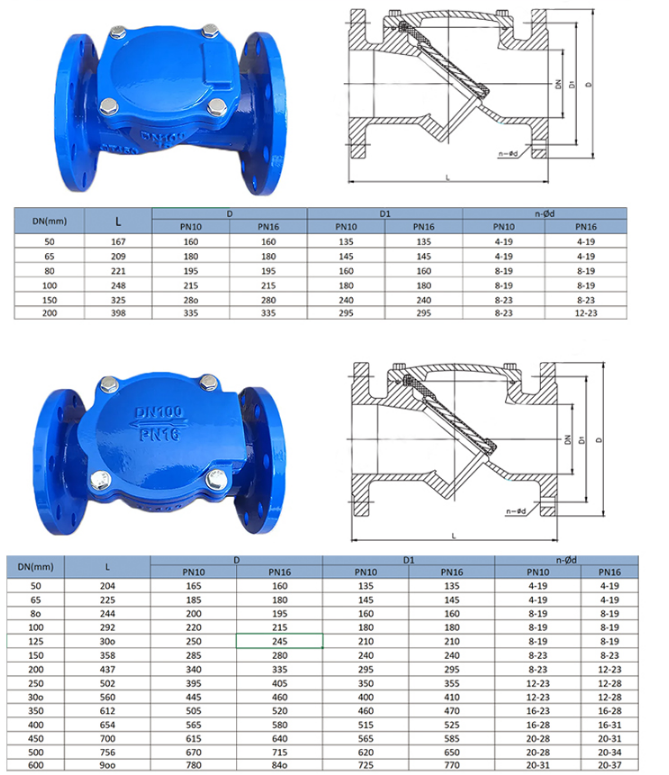

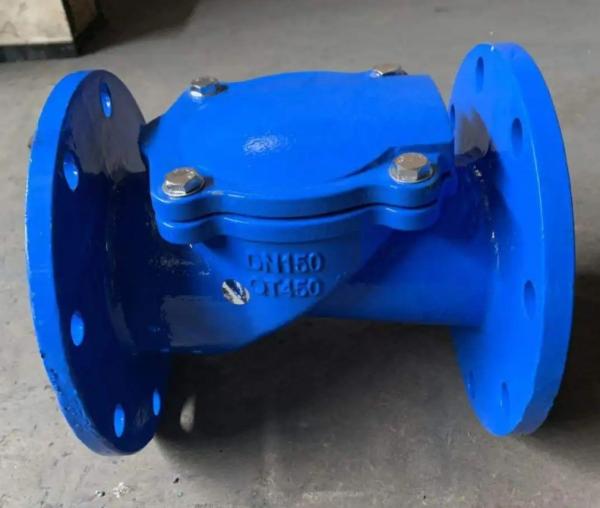

    Product Display

    The parts design of rubber flap check valve is mainly composed of three main parts: valve body.valve cover and rubber flap.The rubber flap in the valve is made of steel plate, steel rod and reinforced nylon cloth as the backing, and theouter laver is covered with rubber, The valve flap opening and closing life can reach 1 million times.The rubber flap check valve adopts the desian of ful flow area. which has the characteristics of small headoss not easv to accumulate debris, and easy maintenance.it is mainly suitable for horizontal installation of water supply and drainage system. t can be installed at theoutlet of the water pump to prevent backflow and water hammer from damaging the pump.it can also be installed on the bypass pipe of the water inlet and outlet pipes of the reservoir to prevent thepool water from flowing back into the water supply system.Check valves are generally suitable for clean media, not for media containing solid particles and high viscosity
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Specification
    Product Name
    Check Valve
    1. Material
    A351 CF8M/CF8/CF3/CF3m, A216 WCB,A352 LCB,A217 WC6/WC9
    2. Size
    1 1/2''~36'' ( DN40~DN900)
    3.Certificate
    ISO9001 & CE
    4. Port
    Full Port
    5. Working Pressure
    150lb~1500lb
    6. Connection Ends
    Flange
    7. Working Temp.
    -196~450ºC
    8. Suitable Medium
    Water, Natural Gas, Oil and some corrosive liquid
    9. Seal
    Metal
    10. Locking
    Option
    11. Inspection & Testing
    According to API598
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Company Profile
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of mechanical products. We has been manufactured and exported in valves, tank heads, flange, pipe and storage tank for more than 20 years, various types of products are made in different materials grades like Carbon
    Steel, Stainless Steel,Aluminum and so on. Our company is located in Tianjin, we have no limitation in transporting our finished product to Tianjin sea port from where we can ship to our customers all over the world！
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Package & Transport
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Our Certificates
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    Cast Iron Flange Ductile EPDM Gasket Swing Non Return Iron Flex Check Valve for Water
    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We are valve manufacturer and factory, and not trading company.
    2. Q: Do you have agent or representative abroad?
    A: We do not have agent abroad, please contact us to purchase valves directly.
    3. Q: What's your product range?
    A: We can produce Butterfly valve, Gate valve, Check valve, Control valve, Y strainer, By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
    4. Q: Is there any stock in your factory? And how about your lead time?
    A: We stock valves with normal sizes. The lead time depends on your quantity, Generally about 30 days.
    5. Q: Which countries do you export to?
    A: We export directly to vast majority of countries in the world.
    6. Q: What certificates will you provide?
    A: We can provide CE/ ISO / WRAS.
    7. Q: After-sales service
    A: 18 months year warranty for all kinds of products.
    As an experienced manufacturer, you can rest assured of the quality and sales service.
    8. Q: Transportation
    A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
    9. Q: Do you provide free sample?
    A: Free sample is OK for us.
    10. Q: Do you accept custom design on size?
    A: Yes, if the size is reasonable.
